Custom Precision High Efficiency 8 Cavities Medical Component PC Material Straight Connector Injection Mold
- Description
- Specification
- Applications
- Advantages
- FAQ
- Recommended Products
Description

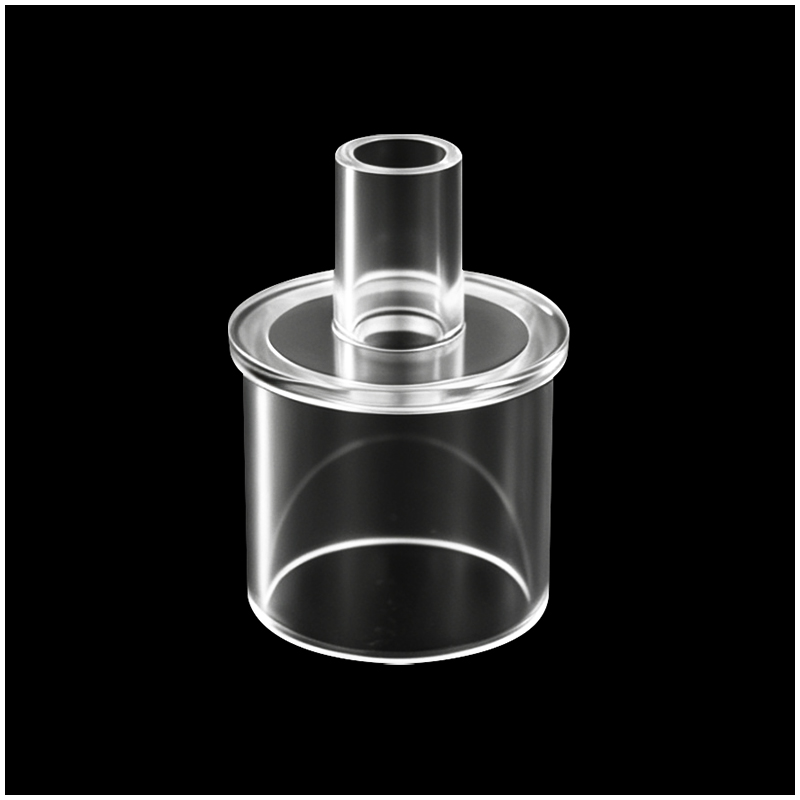

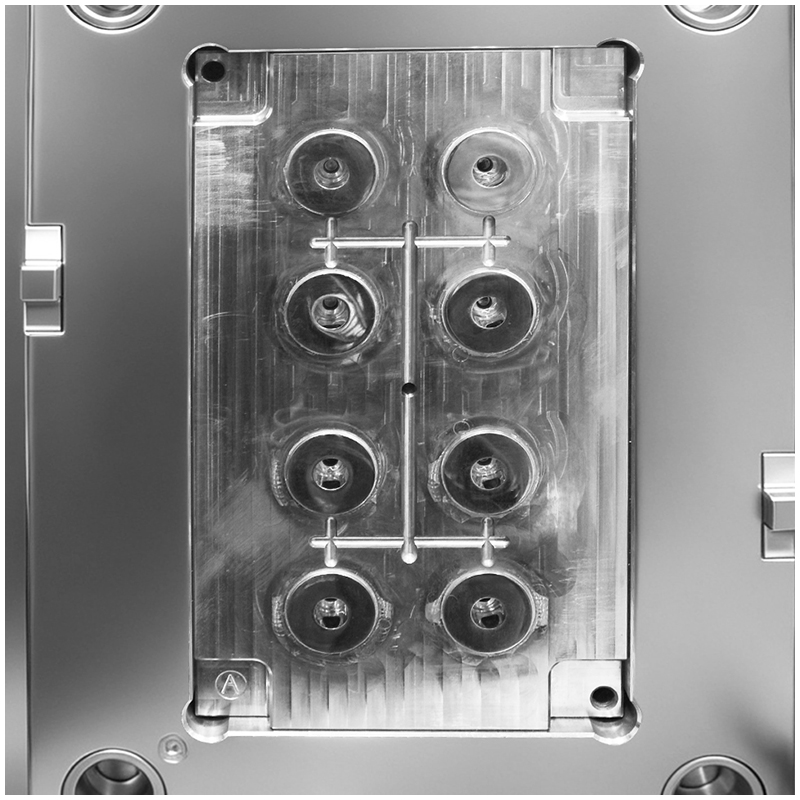

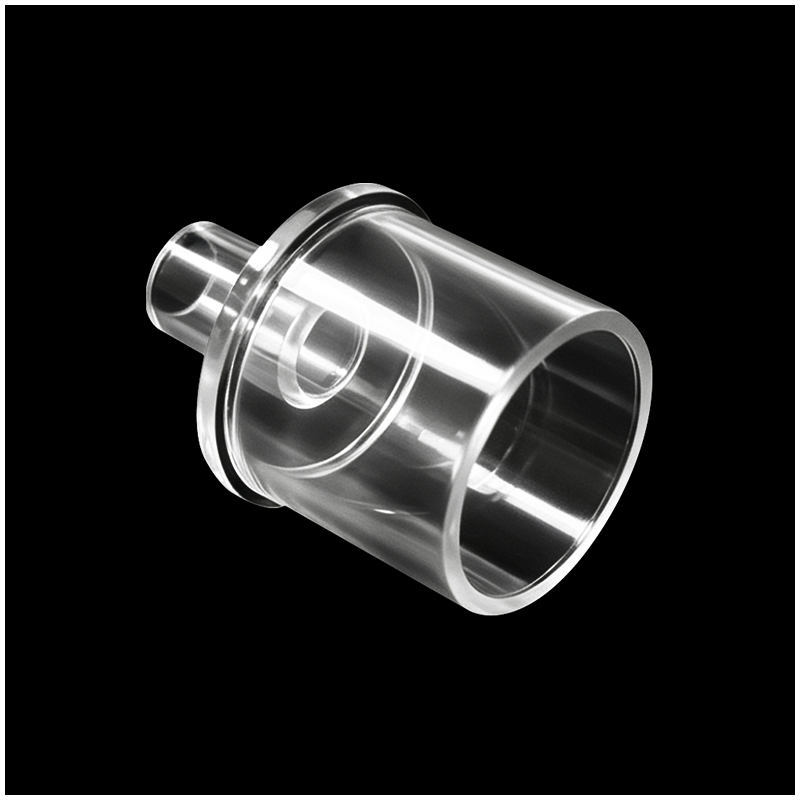

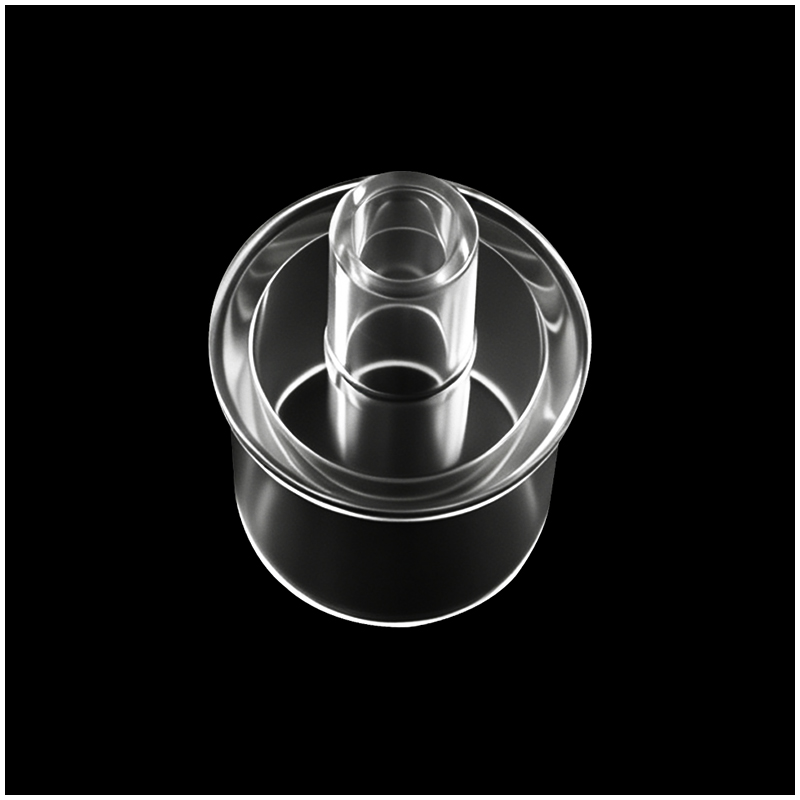

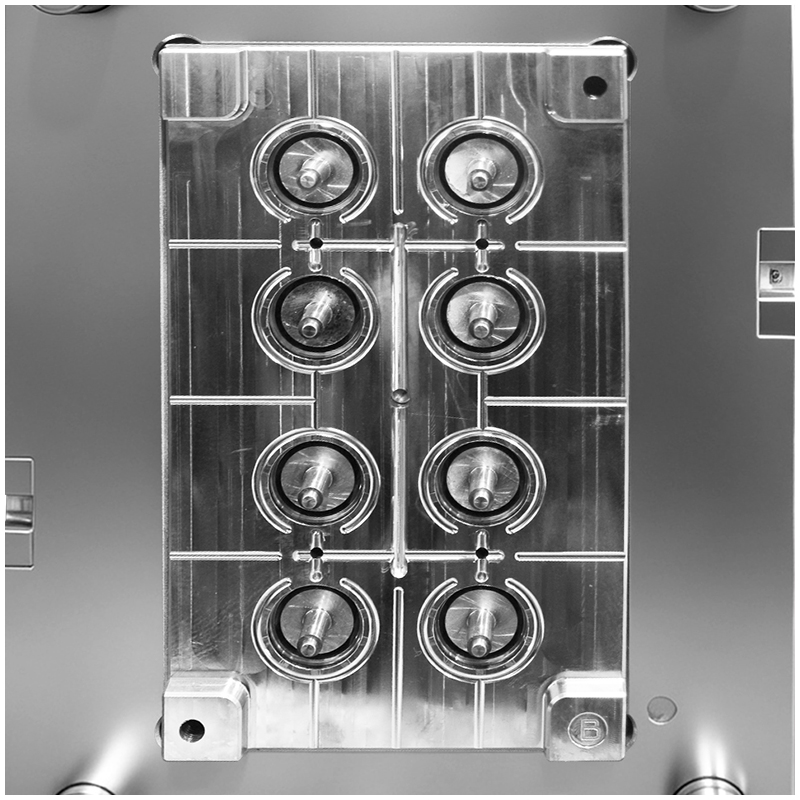

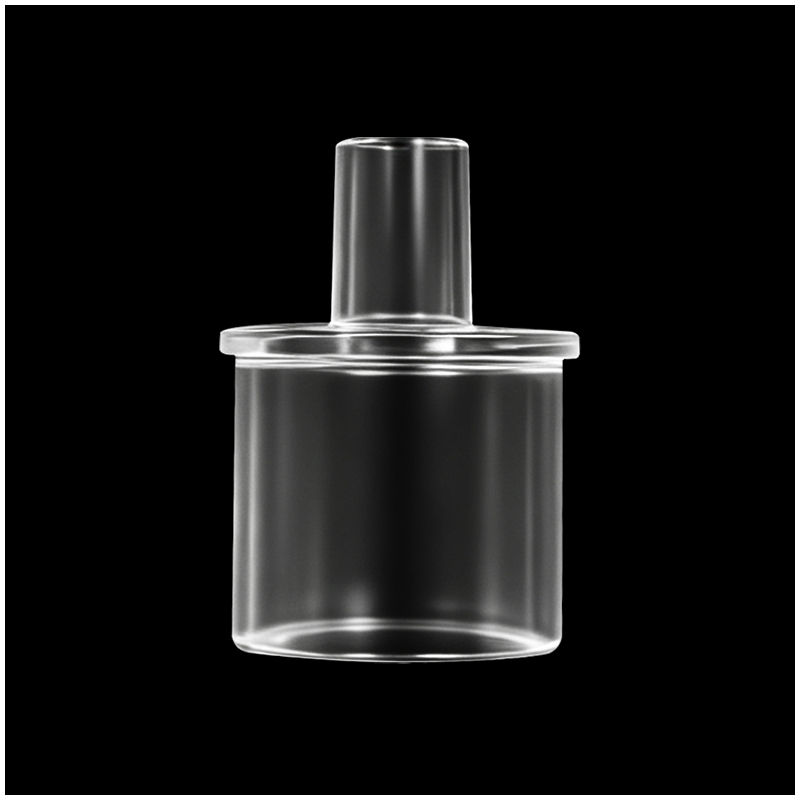

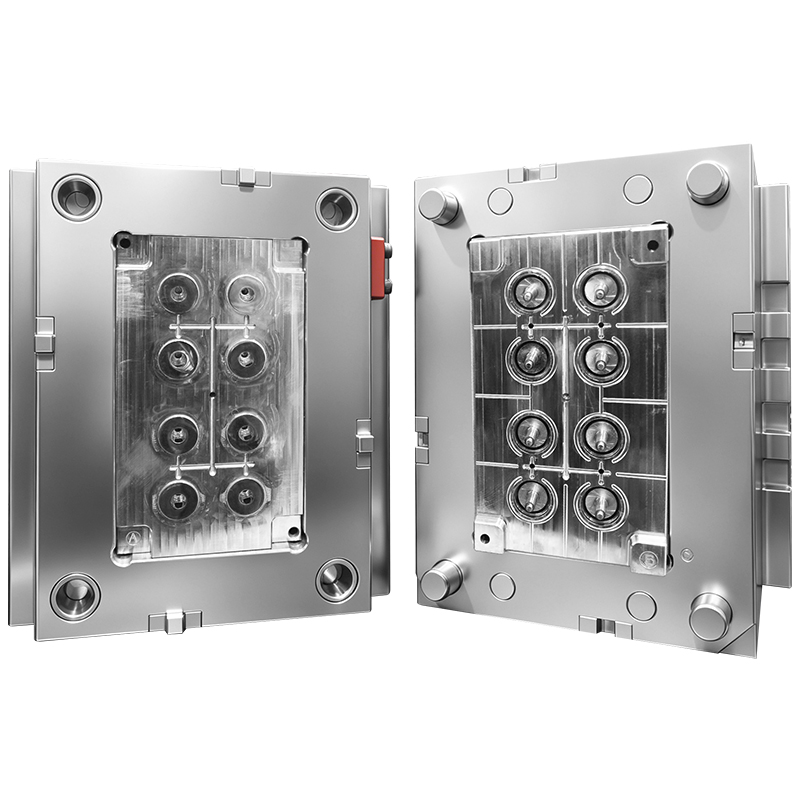

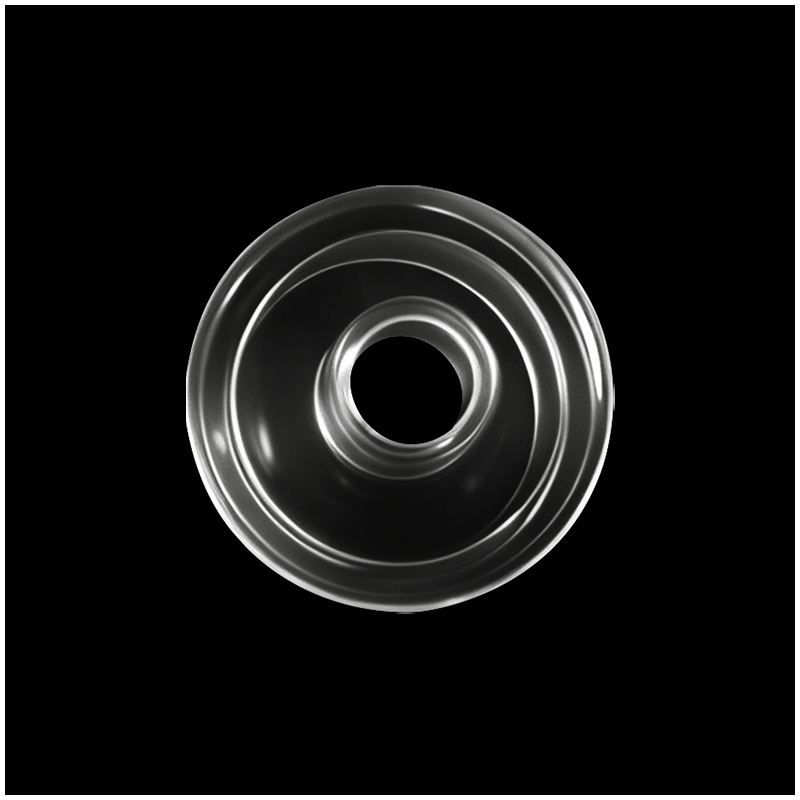

This 8-Cavity Medical Straight Connector Mold is engineered specifically for high-precision medical device manufacturing. Utilizing premium-grade Polycarbonate (PC) material, this injection mold guarantees excellent biocompatibility, high transparency, and exceptional dimensional stability required for medical applications. Designed for high-volume production, the 8-cavity configuration ensures maximum efficiency, low cycle times, and minimal material waste.
Specification
| Product Name | Custom Precision High Efficiency 8 Cavities Medical Component PC Material Straight Connector Injection Mold |
| Model Number |
24189 |
| Mould Base | LKM |
| Mould Material | S136 HRC48-52 |
| Mold Precision | +/-0.01mm |
| Mould Life | 1 million shots |
| Mould Cavity | Multi cavity |
| Runner System | cold/hot runner |
| Equipment | High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Molding Machine from 50-818T available. |
| Plastic Material | PC |
| Metal Material | Heat treatment steel |
| Surface Treatment | Polishing |
| Pls Provide | 2D/3D drawing, samples |
| Quality System |
ISO 9001: 2015 ISO 13485 |
Applications
-
Medical Tubing Systems: Straight connectors for IV fluid delivery, catheters, and drainage systems.
-
OEM Plastic Manufacturing: Custom components for clinical diagnostic equipment and laboratory consumables.
-
Medical Device Molding: Essential joint parts for respiratory devices and anesthesia circuits.
-
Healthcare Molding Solutions: Any liquid or gas fluidic path application requiring non-toxic, sterile medical molding.
Advantages
-
Accurate Molding & High Precision: Engineered with premium injection tooling to achieve micron-level tolerances, ensuring the straight connector has airtight sealing and perfect fitment.
-
Certified Clean Room Plastic Making: Produced and sampled in a certified cleanroom environment (clean room molding) to eliminate particulate contamination, vital for oem medical products.
-
High Efficiency 4-Cavity Design: The 4-cavity injection mold configuration maximizes production output while maintaining uniform part quality, reducing your per-part cost.
-
Premium Medical-Grade PP Processing: Specialized in handling medical PP material, ensuring the final plastic moulded part features excellent chemical resistance, clarity, and sterilization stability.
-
Full OEM/ODM Capability: Backed by years of expertise in medical device molding, we offer comprehensive plastic mould tooling design, prototyping, and mass production.
FAQ
Q:How about your quality control?
A:We have professional team to control mold quality, since we realize that quality control is the first priority to run business
Q:What's your lead time?
A:For most mold, 45 to 60 working days (not including Chinese official holidays) after deposit received and mold drawings approved
Q:How long can i get the sample?
A:Depends on your specific items,within 3-7 days is required generally.
Q:What information do you need to provide a mold quote?
A:3D part file (STEP/IGS), 2D drawing with tolerances, material type, estimated annual volume, and injection machine specifications (tonnage, tie-bar spacing).
