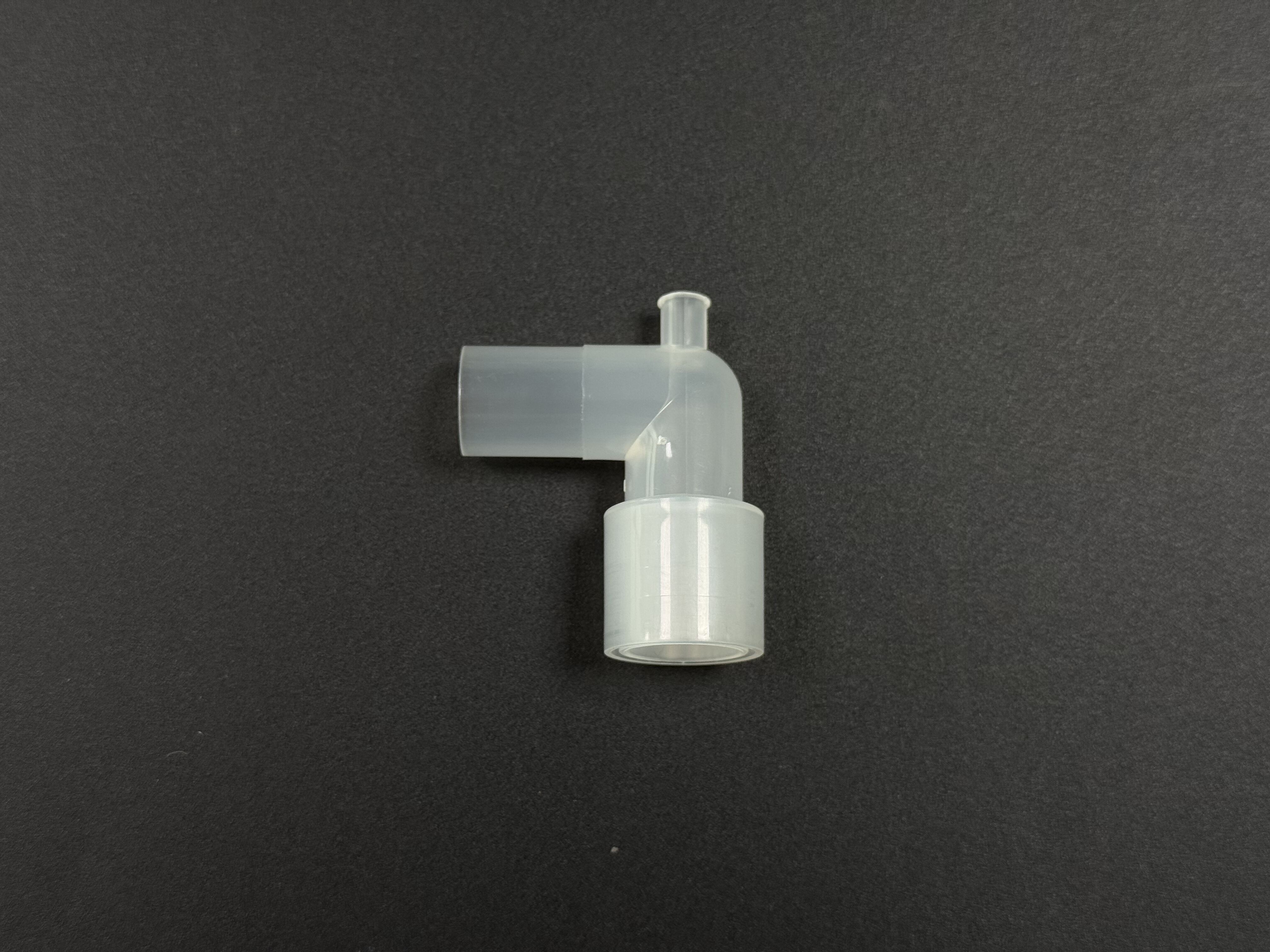

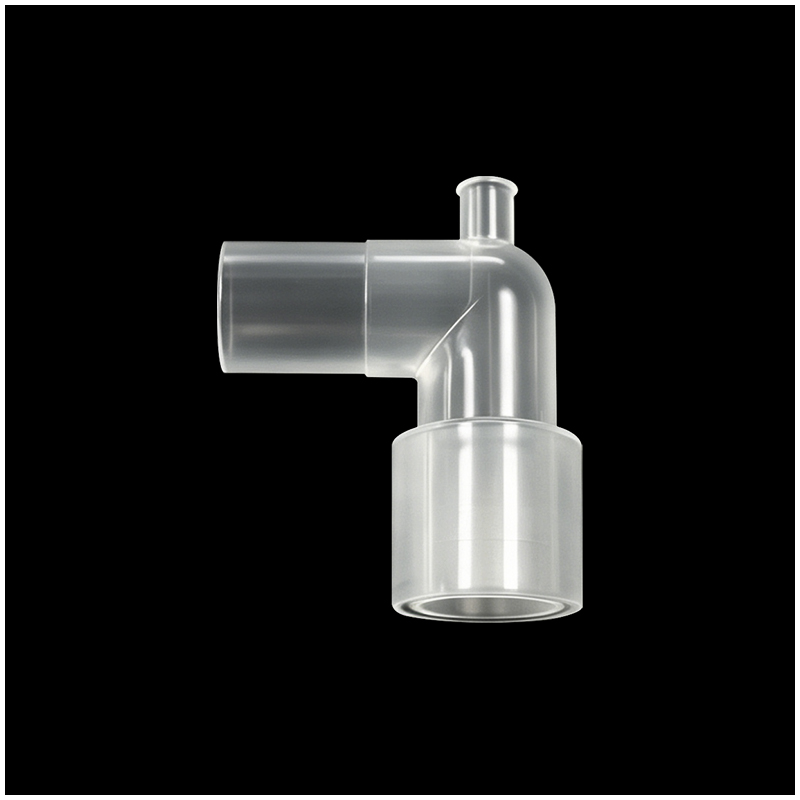

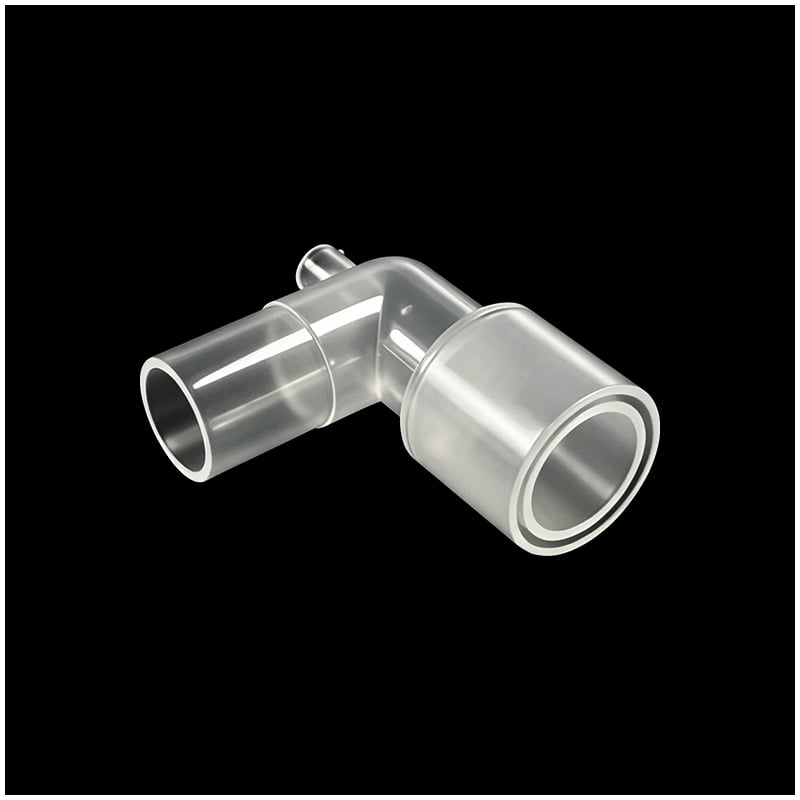

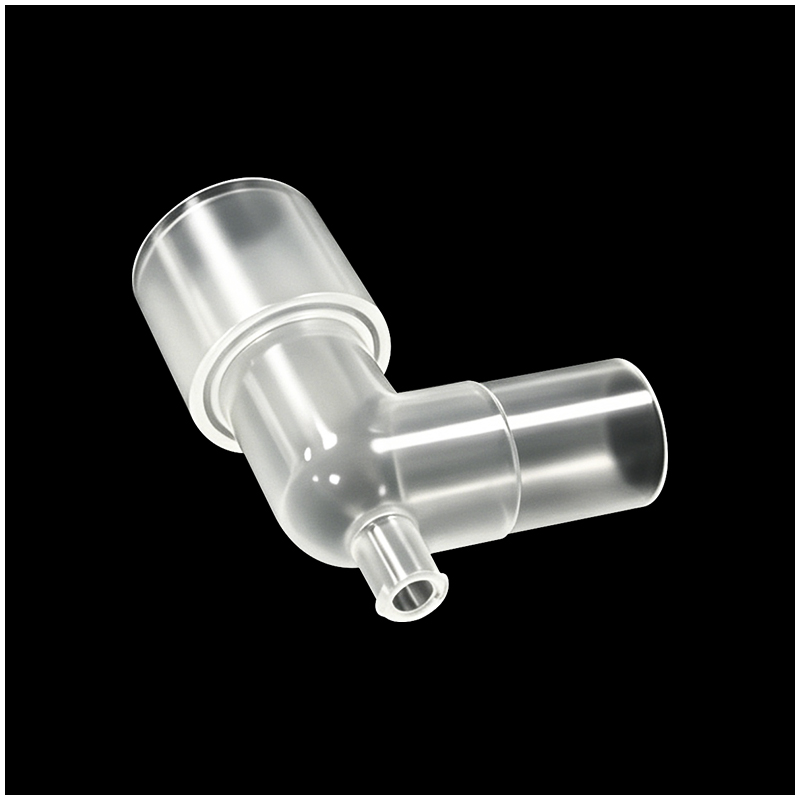

Medical-Grade catheter connection component with Integrated Valve PP Material Custom 4-Cavity Bended Connector Injection Mold
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

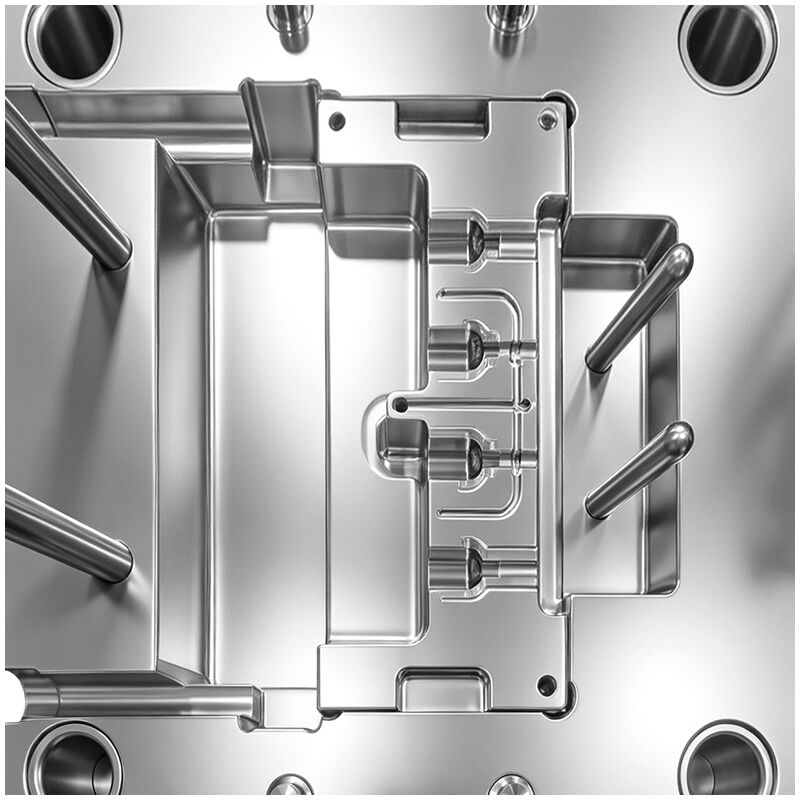

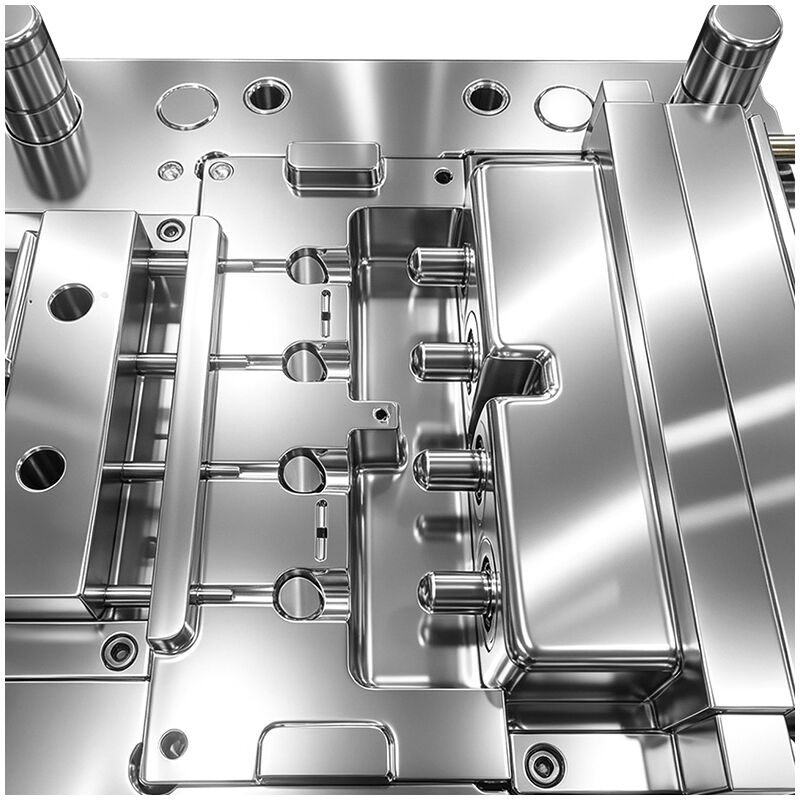

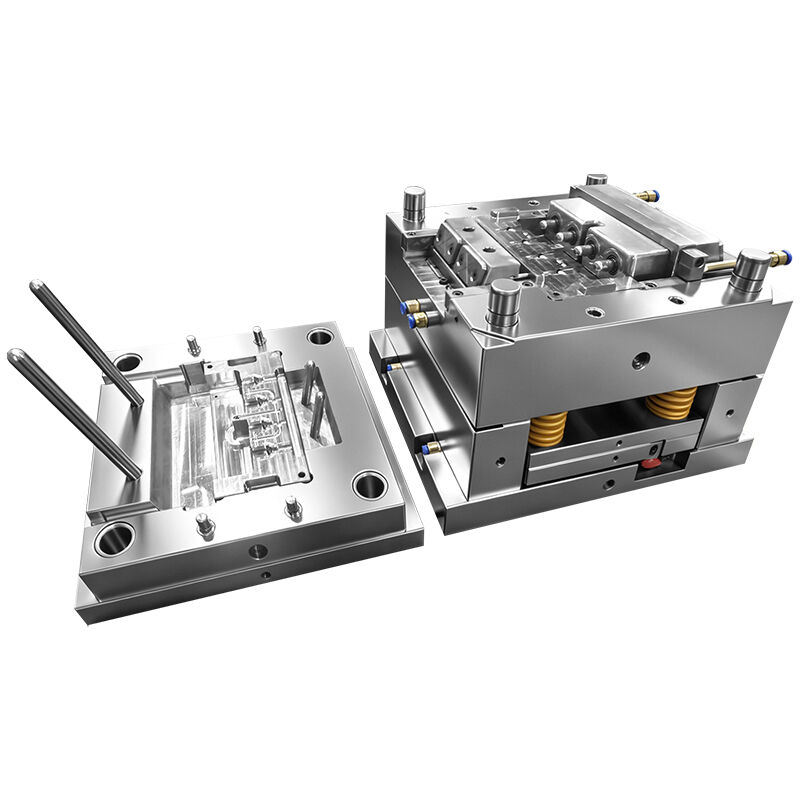

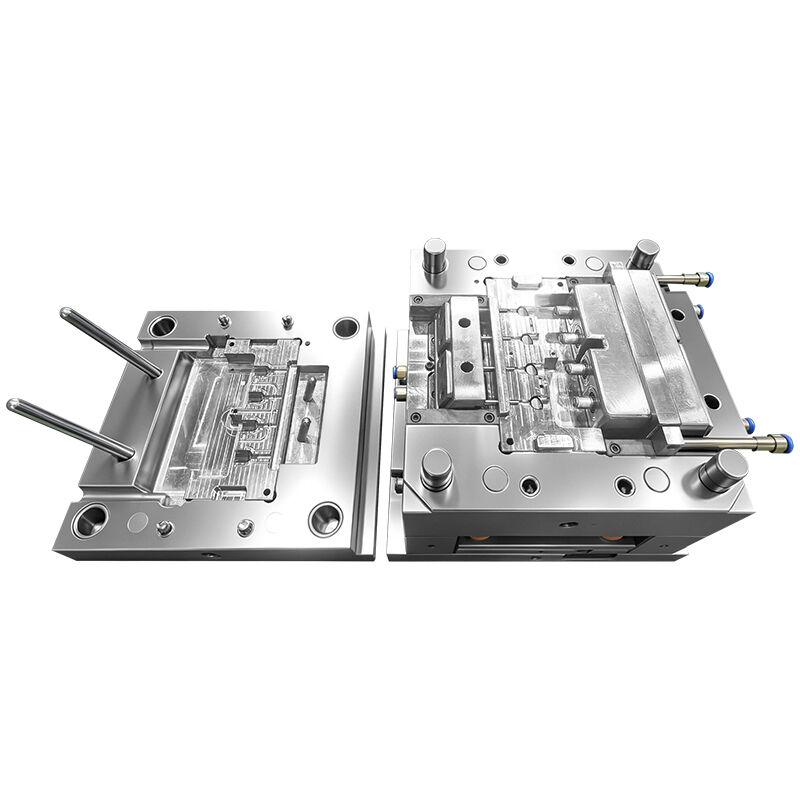

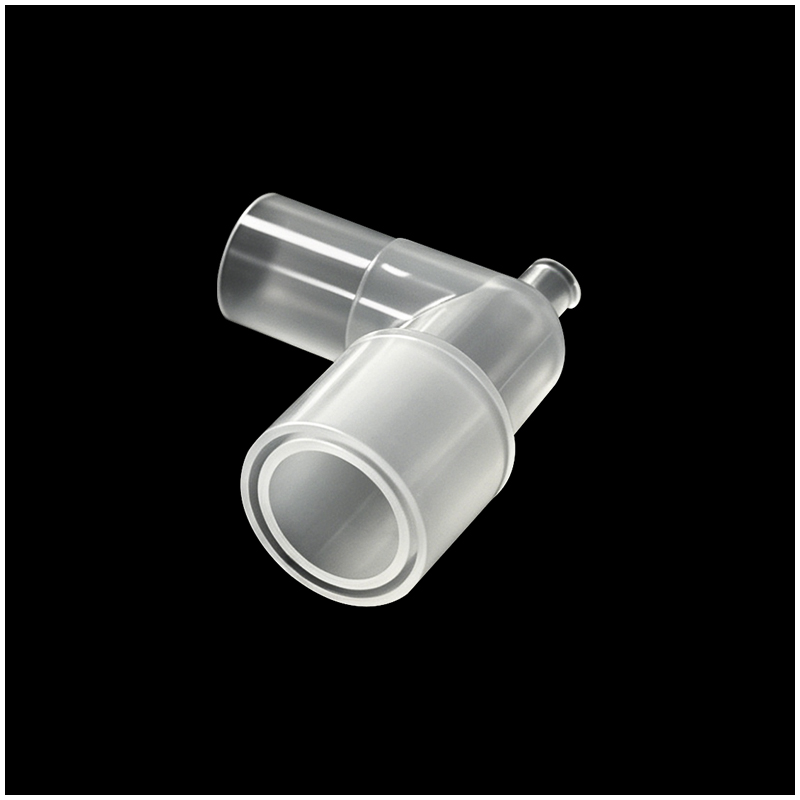

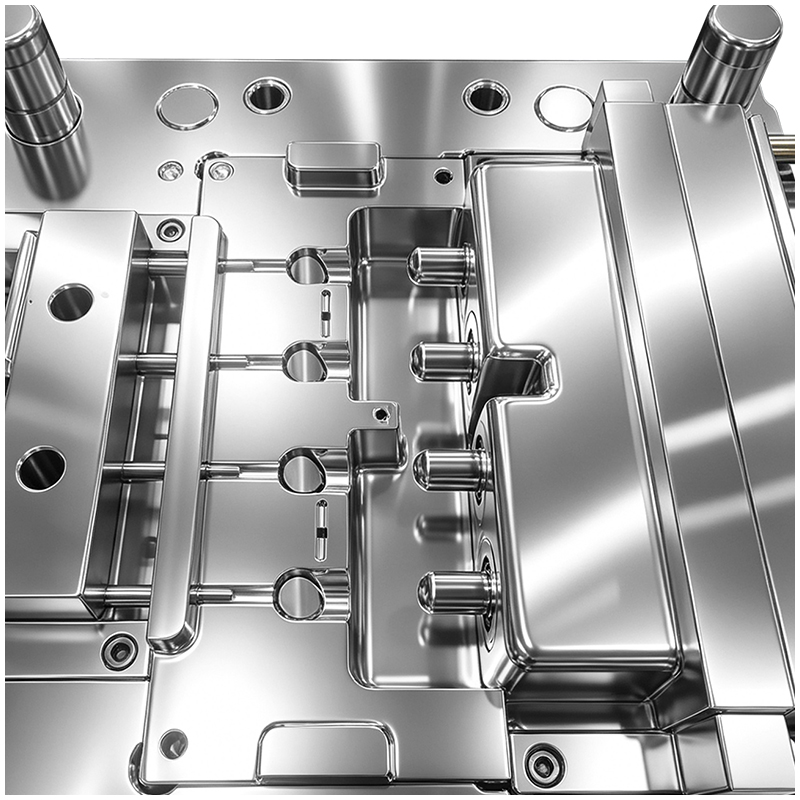

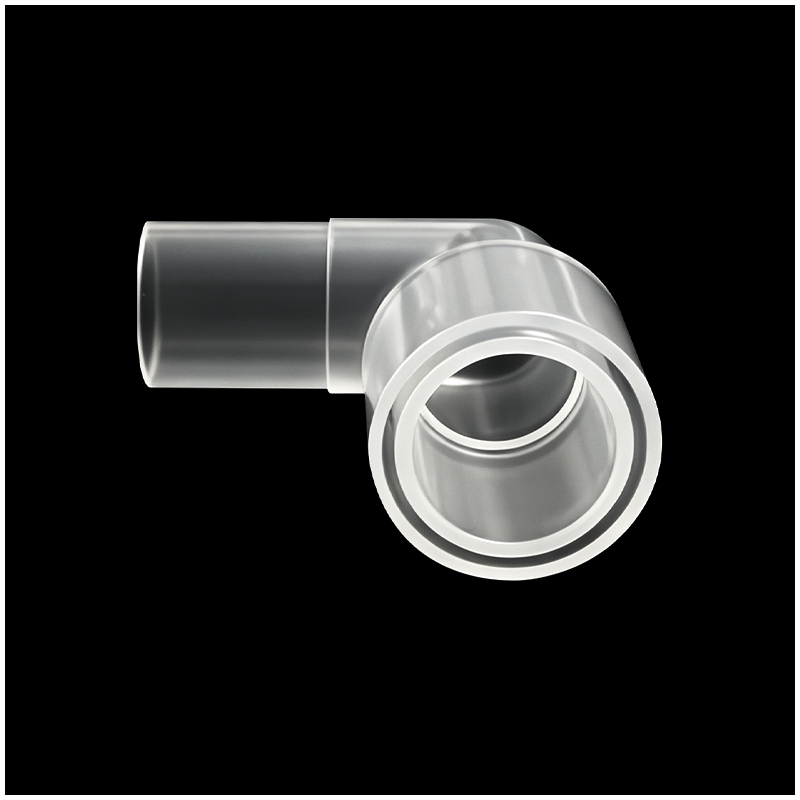

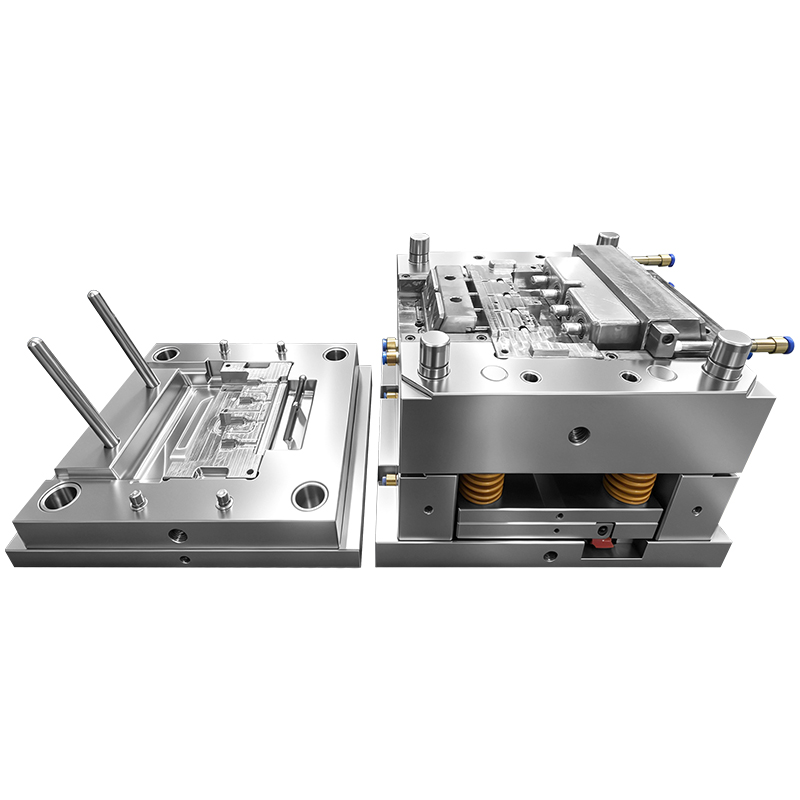

This high-precision injection mold features a 4-cavity configuration specifically engineered for the high-volume, efficient production of medical-grade components. The mold is designed to manufacture specialized bended (angled) connectors integrated with built-in valves. Utilizing premium-grade tool steel and advanced hot/cold runner systems, this mold ensures exceptional dimensional stability, minimal flash, and uniform wall thickness across all cavities. It complies with the stringent manufacturing tolerances required for medical devices, ensuring that every molded part meets strict fluid-control and hygienic standards.
Specifications
| Product Name | Medical-Grade catheter connection component with Integrated Valve PP Material Custom 4-Cavity Bended Connector Injection Mold |
| Model Number | 24182 |
| Mould Base | LKM |
| Mould Material | S136 HRC48-52 |
| Mold Precision | +/-0.01mm |
| Mould Life | 1 million shots |
| Mould Cavity | Multi cavity |
| Runner System | cold/hot runner |
| Equipment | High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Molding Machine from 50-818T available. |
| Plastic Material | PP |
| Metal Material | Heat treatment steel |
| Surface Treatment | Polishing |
| Pls Provide | 2D/3D drawing, samples |
| Quality System |
ISO 9001: 2015 ISO 13485 |
Applications
-
Medical Device Manufacturers (MDMs): Companies specializing in the production of fluid management systems, IV administration sets, respiratory equipment, and urological devices.
-
Precision Injection Molding Contractors: Contract manufacturers looking to expand their medical portfolio with high-performance, cleanroom-compatible tooling.
-
Healthcare Component Suppliers: OEM/ODM suppliers who provide specialized fluid-control connectors, stopcocks, and valve assemblies to the global healthcare market.
Advantages
-
High Efficiency & Throughput: The 4-cavity design optimizes production cycles, significantly increasing output while reducing per-part manufacturing costs compared to lower-cavity molds.
-
Premium Medical-Grade Material Optimization: Engineered specifically to process Medical Polypropylene (PP), ensuring excellent thermal stability, material flow, and flawless surface finishes that resist bacterial adhesion.
-
Complex Geometry Capability: Expertly handles the intricate tooling challenges of a bended connector with an integrated valve, utilizing advanced core-pulling or lifter mechanisms to achieve seamless internal fluid pathways without parting-line defects.
-
Superior Durability & Longevity: Built with high-wear-resistance mold steel, offering a long mold life (up to millions of cycles) with low maintenance requirements, ensuring a high return on investment.
-
Strict Quality Compliance: Delivers high repeatability and tight tolerances within 0.02 mm necessary to pass rigorous medical validations (such as FDA or ISO 13485 requirements).
FAQ
Q:How about your quality control?
A:We have professional team to control mold quality, since we realize that quality control is the first priority to run business
Q:What's your lead time?
A:For most mold, 45 to 60 working days (not including Chinese official holidays) after deposit received and mold drawings approved
Q:How long can i get the sample?
A:Depends on your specific items,within 3-7 days is required generally.
Q:What information do you need to provide a mold quote?
A:3D part file (STEP/IGS), 2D drawing with tolerances, material type, estimated annual volume, and injection machine specifications (tonnage, tie-bar spacing).
