Custom 4 Cavities Precision Medical Device Clean Room Plastic Moulding Medical Grade PP Material Straight Connector Injection Mold
- Description
- Specification
- Applications
- Advantages
- FAQ
- Recommended Products
Description
Our premium 4-cavity straight connector mold is engineered specifically for high-precision healthcare molding. Utilizing state-of-the-art plastic mould tooling and advanced injection moulding technology, we deliver flawless oem medical products that meet the stringent standards of the medical industry. Manufactured entirely via clean room molding processes, this precision mold ensures zero contamination and maximum biocompatibility.
Specification
| Product Name | Custom 4 Cavities Precision Medical Device Clean Room Plastic Moulding Medical Grade PP Material Straight Connector Injection Mold |
| Model Number |
24188 |
| Mould Base | LKM |
| Mould Material | S136 HRC48-52 |
| Mold Precision | +/-0.01mm |
| Mould Life | 1 million shots |
| Mould Cavity | Multi cavity |
| Runner System | cold/hot runner |
| Equipment | High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Molding Machine from 50-818T available. |
| Plastic Material | PP |
| Metal Material | Heat treatment steel |
| Surface Treatment | Polishing |
| Pls Provide | 2D/3D drawing, samples |
| Quality System |
ISO 9001: 2015 ISO 13485 |
Applications
-

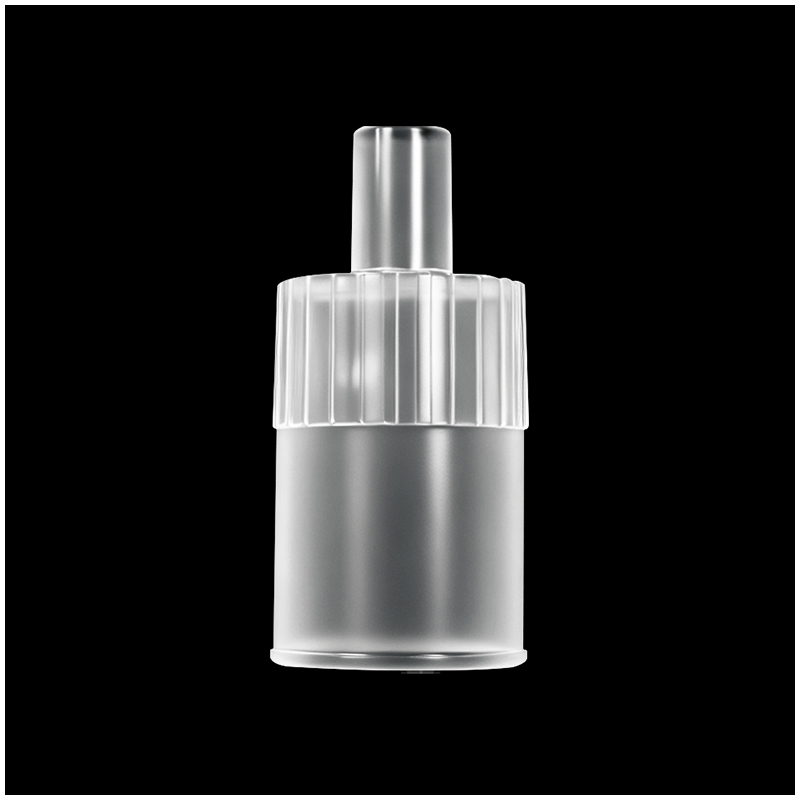

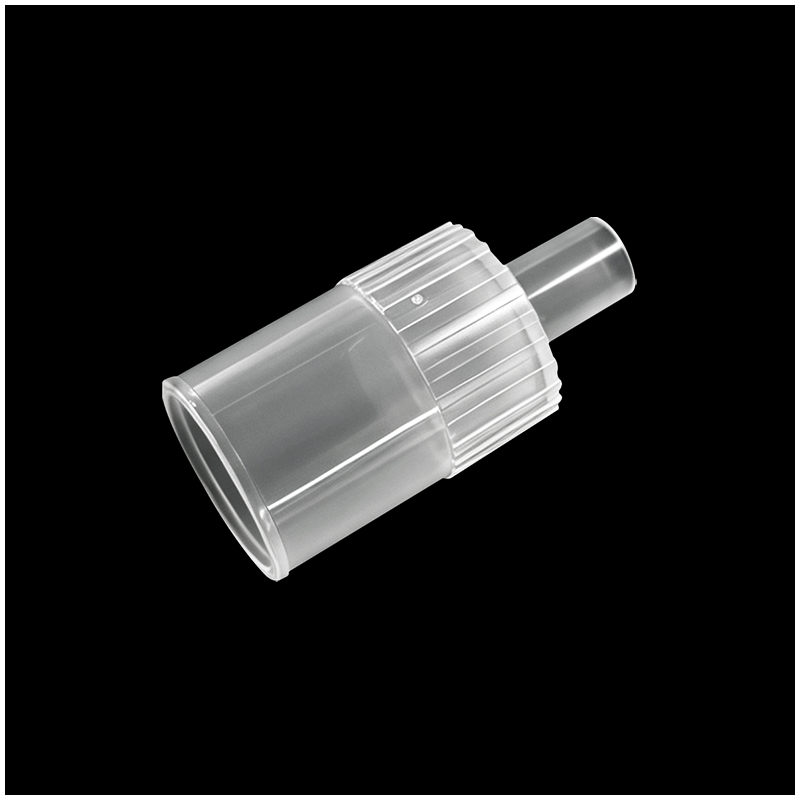

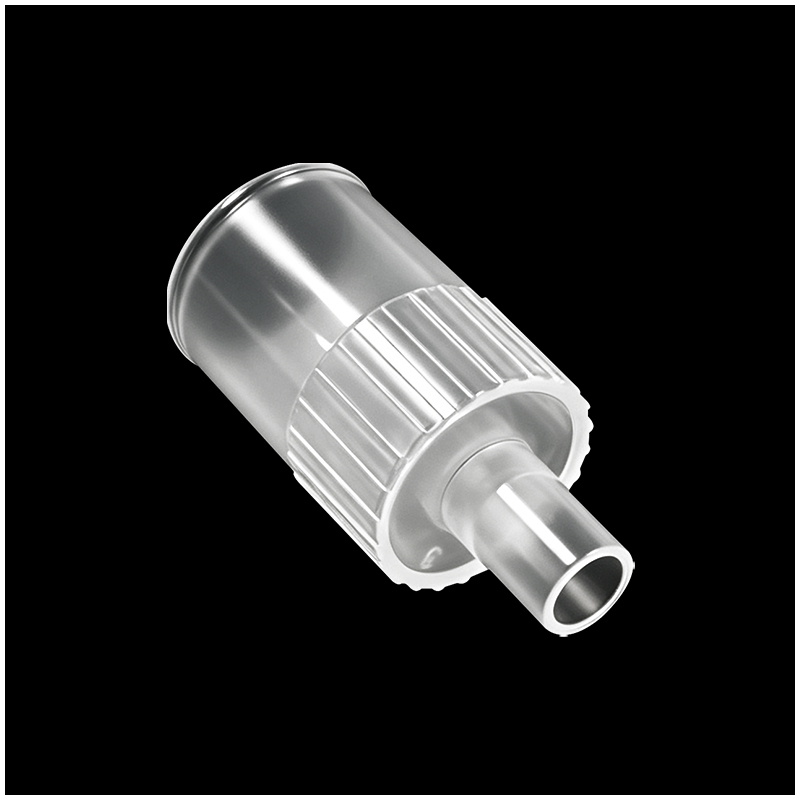

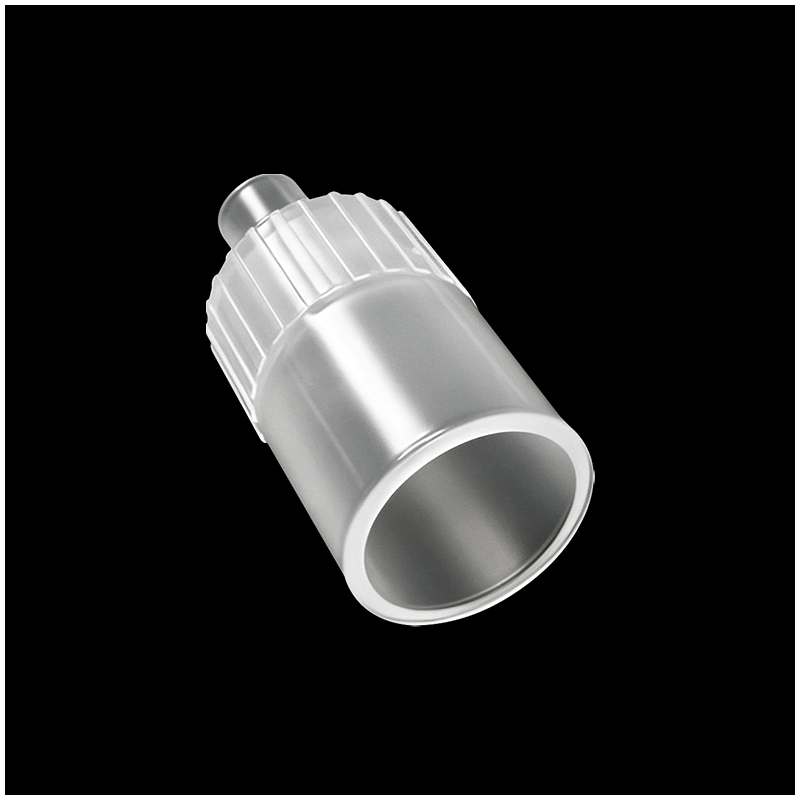

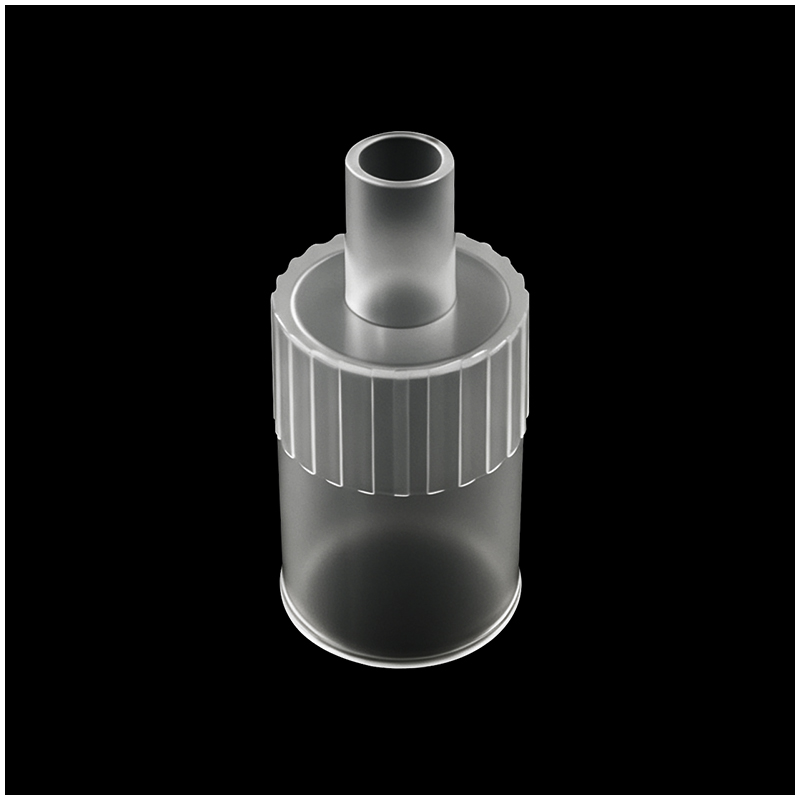

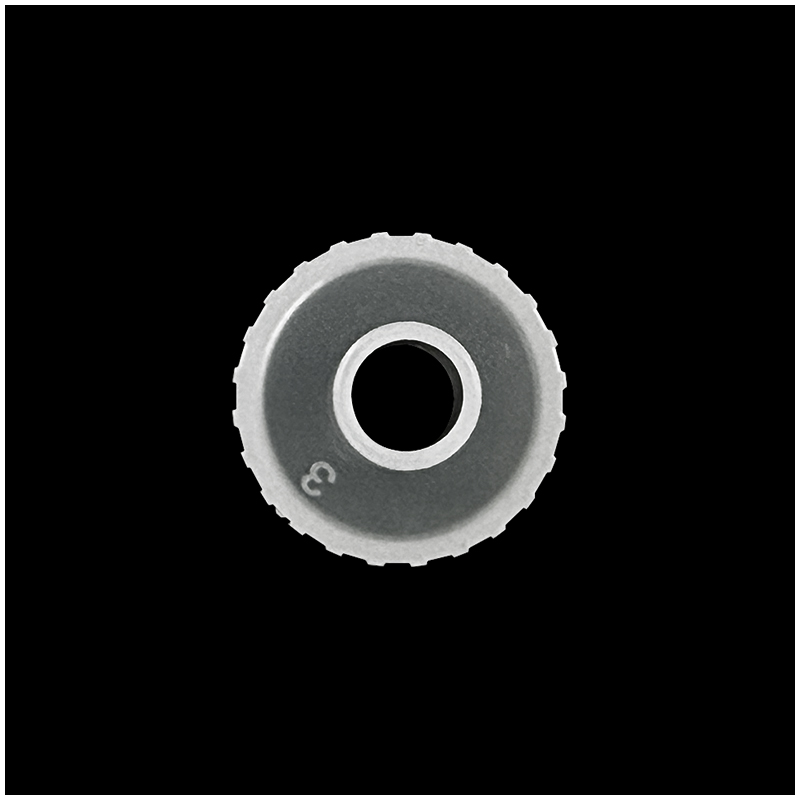

Medical Tubing Systems: Straight connectors for IV fluid delivery, catheters, and drainage systems.
-
OEM Plastic Manufacturing: Custom components for clinical diagnostic equipment and laboratory consumables.
-
Medical Device Molding: Essential joint parts for respiratory devices and anesthesia circuits.
-
Healthcare Molding Solutions: Any liquid or gas fluidic path application requiring non-toxic, sterile medical molding.
Advantages
-
Accurate Molding & High Precision: Engineered with premium injection tooling to achieve micron-level tolerances, ensuring the straight connector has airtight sealing and perfect fitment.
-
Certified Clean Room Plastic Making: Produced and sampled in a certified cleanroom environment (clean room molding) to eliminate particulate contamination, vital for oem medical products.
-

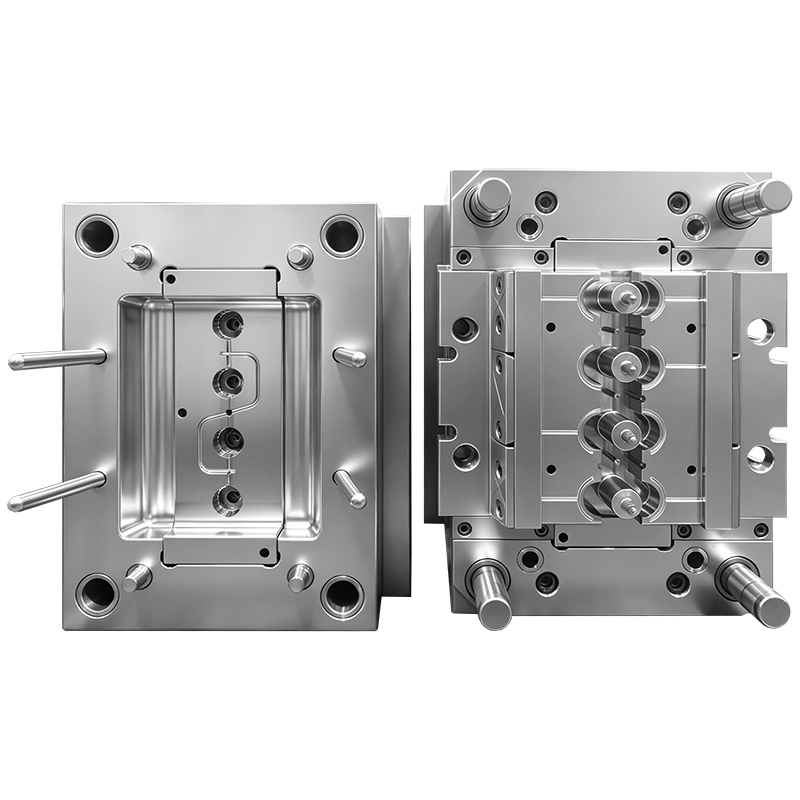

High Efficiency 4-Cavity Design: The 4-cavity injection mold configuration maximizes production output while maintaining uniform part quality, reducing your per-part cost.
-
Premium Medical-Grade PP Processing: Specialized in handling medical PP material, ensuring the final plastic moulded part features excellent chemical resistance, clarity, and sterilization stability.
-
Full OEM/ODM Capability: Backed by years of expertise in medical device molding, we offer comprehensive plastic mould tooling design, prototyping, and mass production.
FAQ
Q:How about your quality control?
A:We have professional team to control mold quality, since we realize that quality control is the first priority to run business
Q:What's your lead time?
A:For most mold, 45 to 60 working days (not including Chinese official holidays) after deposit received and mold drawings approved
Q:How long can i get the sample?
A:Depends on your specific items,within 3-7 days is required generally.
Q:What information do you need to provide a mold quote?
A:3D part file (STEP/IGS), 2D drawing with tolerances, material type, estimated annual volume, and injection machine specifications (tonnage, tie-bar spacing).
