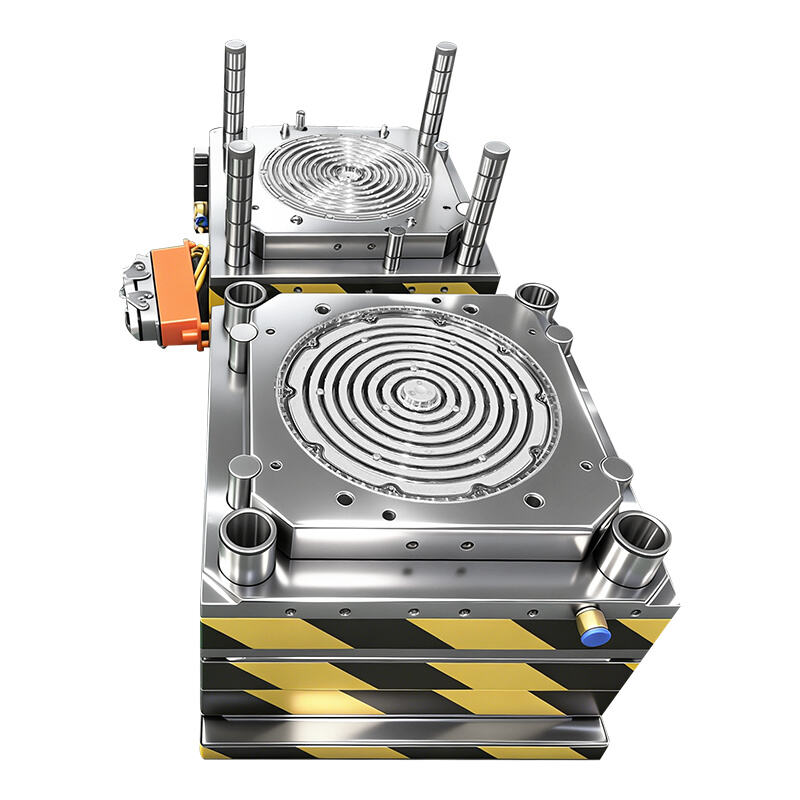

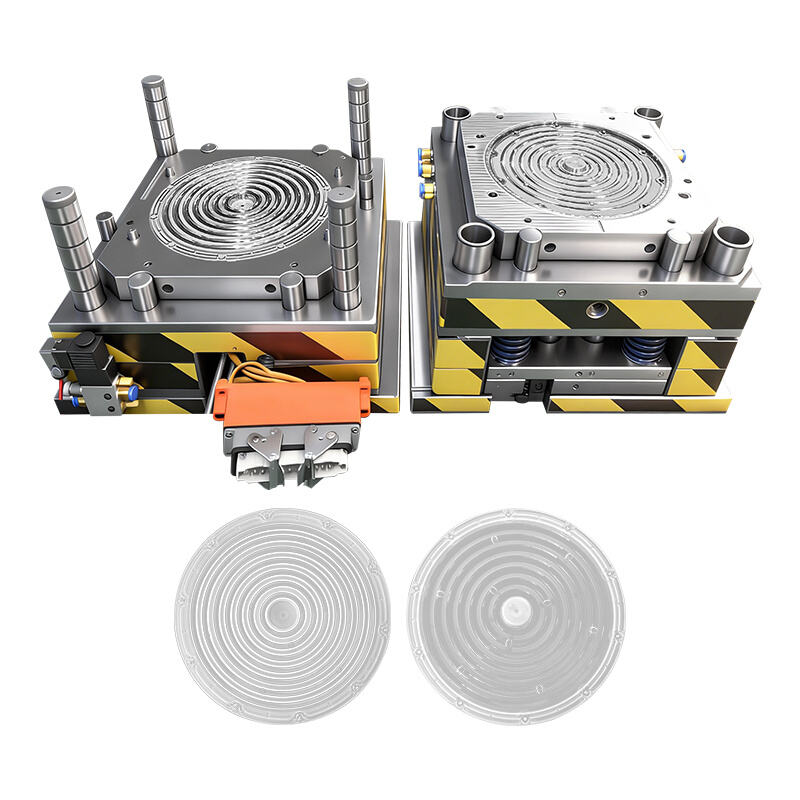

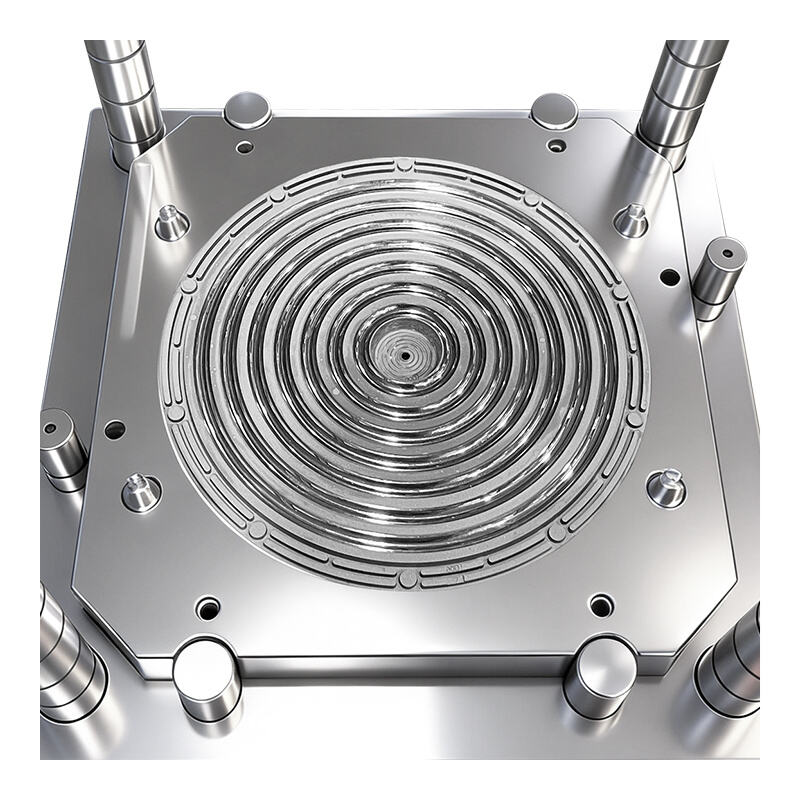

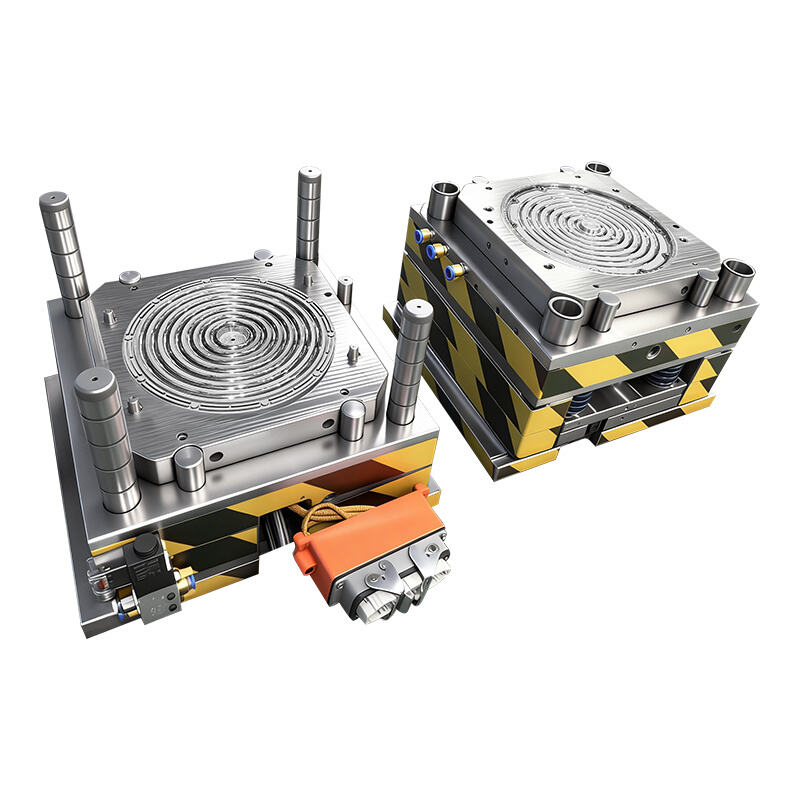

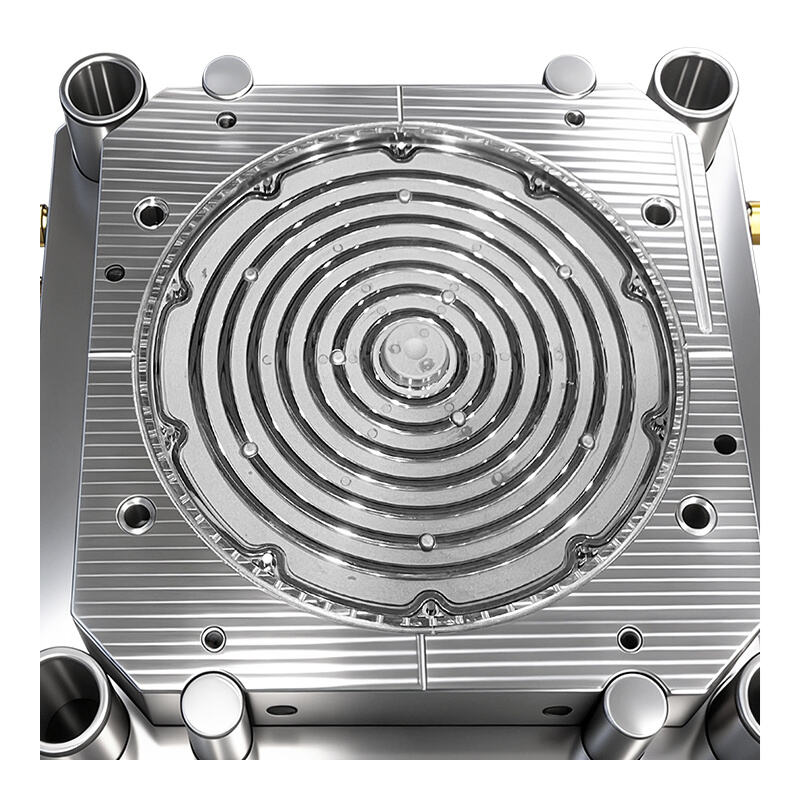

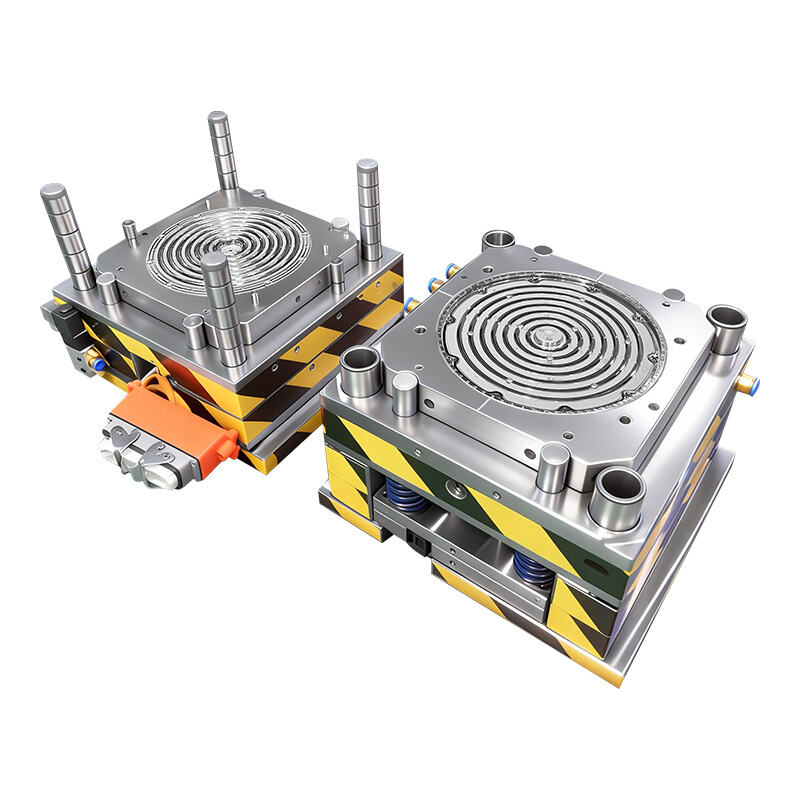

Optical base plastic lens injection mold and molding
Applications:
Secondary optical lens for high-power LED mining lights/high ceiling lights
- Description
- Specifications
- Advantages
- FAQ
- Recommended Products
Description
Specifications
| Product Name | Optical base plastic lens injection mold and molding |
| Brand Name | Yixun |
| Model Number | 26010 |
| Mold Base | LKM standard |
| Mold Material | 1.2383ESRHRC46-48 |
| Mold Life | 300k-5000K |
| Surface Treatment | Polishing and texture |
| Mold Precision | +/-0.01mm |
| Plastic Material | PC |
| Mold Cavity | Accept customized (Single or Multi-cavity) |
| Gate Type | Valve Gate |
| Certification | ISO9001 ISO13485 certification |
Advantages
1. High precision optical lens molding: optical lens mold accuracy of ± 0.01mm ensures the consistency of the lens ring pattern, achieves stable focusing effect, and avoids uneven light spots.
2. Optical grade material adaptation: PMMA/PC optical grade material is used for injection molding, with high light transmittance, yellowing resistance and aging resistance, to meet the long-term use needs of industrial lamps.
3. Large size multi cavity mold capability: Supports customized single cavity/multi cavity molds for large diameter lenses, suitable for large-scale production, and ensures the delivery efficiency of industrial lighting fixtures.
FAQ
Q:What type of lens are you making?
A:Optical Lenses, imaging lenses, car lights, medical lenses.
Q:How much precision can lens molds achieve?
A:The mold tolerance can be up to 0.01 - 0.02 mm.
Q:Do you have precision machining equipment?
A:We have precision machining equipment, including high-speed CNC, Shamir spark machines, Shamir wire cutting, and Fanuc injection molding machines.
Q:Do you have the Clean Room workshop?
A:We have a 100000 level dust-free injection molding workshop.
Q:What equipment is used for quality inspection?
A:Ultra high precision coordinate measuring machine,projector.
Q:What material is used for mold steel?
A:S136 / S136H S-STAR
Q:Do you have ISO 9001 or IATF 16949 certification?
A:We have both ISO9001 and IATF16949 Certification .
