What is Precision Mold?

A precision mold is a specialized tooling built to maintain ultra-tight micrometer-level dimensional tolerances, used to produce complex, high-precision plastic or metal components.

Compared with ordinary molds, precision molds control strict tolerance, excellent surface finish and stable long-run production. Standard molds cannot meet the strict requirements of medical parts, electronic connectors and optical components, so precision mold becomes the core manufacturing tool for these high-end industries.

Main Types of Precision Molds

There are 3 common categories of precision molds based on molding materials and processes.

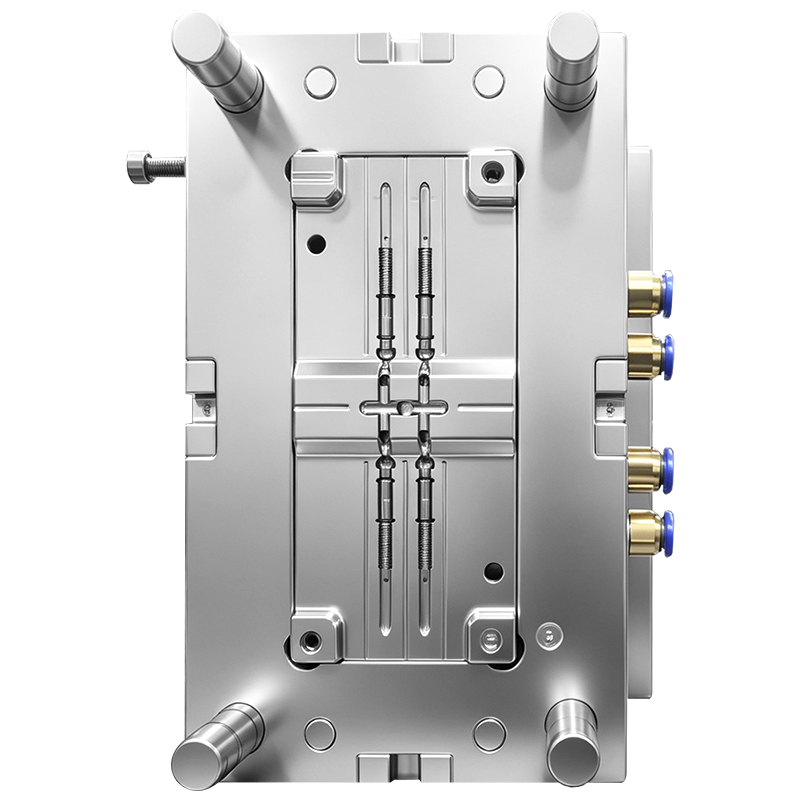

1.Precision Plastic Injection Mold (Our core product)

It adopts injection molding technology to produce complex precision plastic parts. Widely used for consumer electronics precision connectors, medical disposables, precision gears and optical lenses.

2.Precision Stamping Mold

For shearing and forming metal sheets. Typical applications include automotive cover parts, motor rotor & stator, battery terminals, which require ultra-high dimensional tolerance and long mold lifespan.

3.Precision Die Casting Mold

Used for high-pressure forming of molten metal. Commonly applied in automotive lightweight parts and 3C metal housings, with high requirements for high-temperature resistance and fatigue resistance.

The Manufacturing Process of Precision Mold

Precision mold manufacturing is a systematic project combining material science, design engineering, CNC machining and quality control. Every procedure requires strict measurement and fine tuning.

1.Mold Design & CAE Simulation

Engineers use UG, PROE(Creo) and AutoCAD for 3D mold design. CAE mold flow simulation is applied to simulate injection and stamping process, to predict and solve potential defects like shrinkage and deformation in advance.

2.High-precision Machining

• CNC Machining Center: Rough and finish machining for mold cavities, equipped with Fanuc CNC & high-speed CNC machines for high precision milling
• Wire EDM: Machining by 0.02mm wire, tolerance controlled within ±0.001mm
• Mirror EDM: For hard steel and tiny complex structures, surface roughness Ra ≤0.005mm
• Optical Curve Grinder: Ultra-precision grinding for mold inserts

3.Inspection & Assembly

We use CMM (Coordinate Measuring Machine) and optical contour projector for micron-level inspection to guarantee geometric tolerance. Experienced mold fitters complete mold assembly, trial molding and fine adjustment.

Typical Application Industries

Precision molds serve many high-precision industries:

• Medical industry: Medical devices, medical components and medical disposables (supported by our ISO13485 certification)
• Consumer electronics: Precision connectors for electronic assemblies

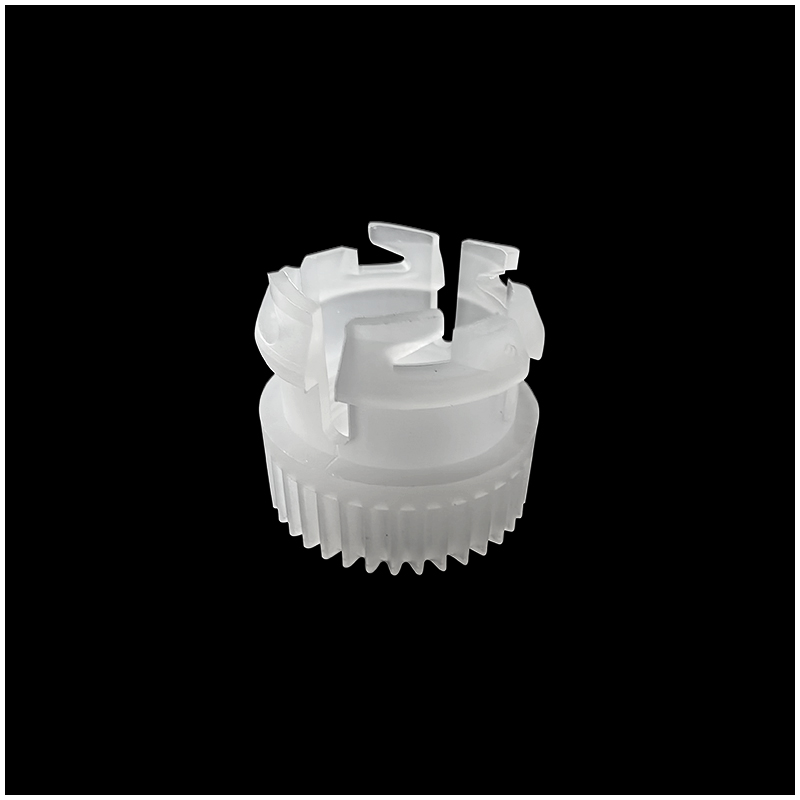

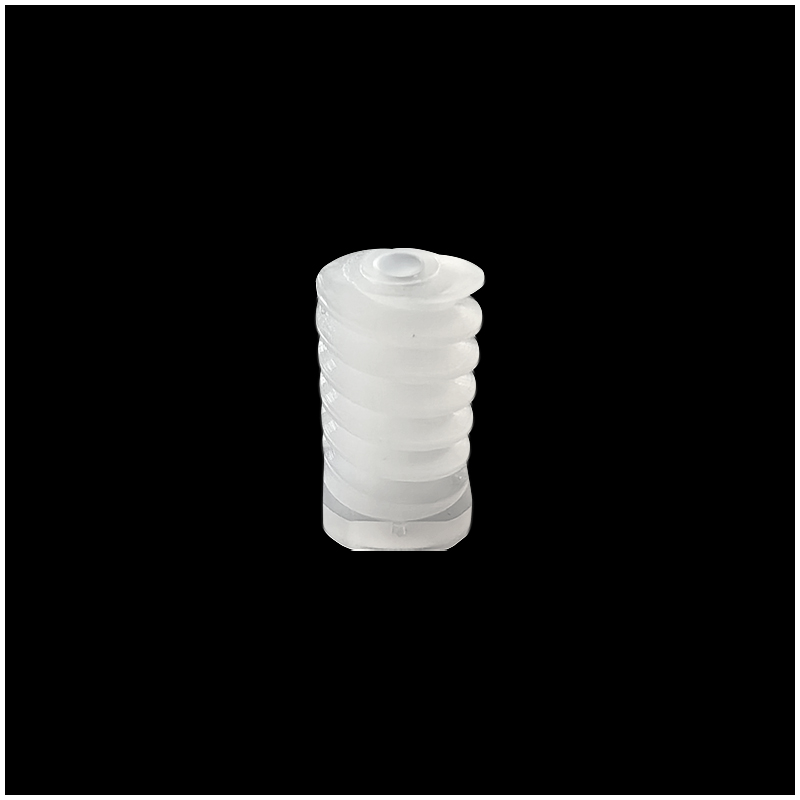

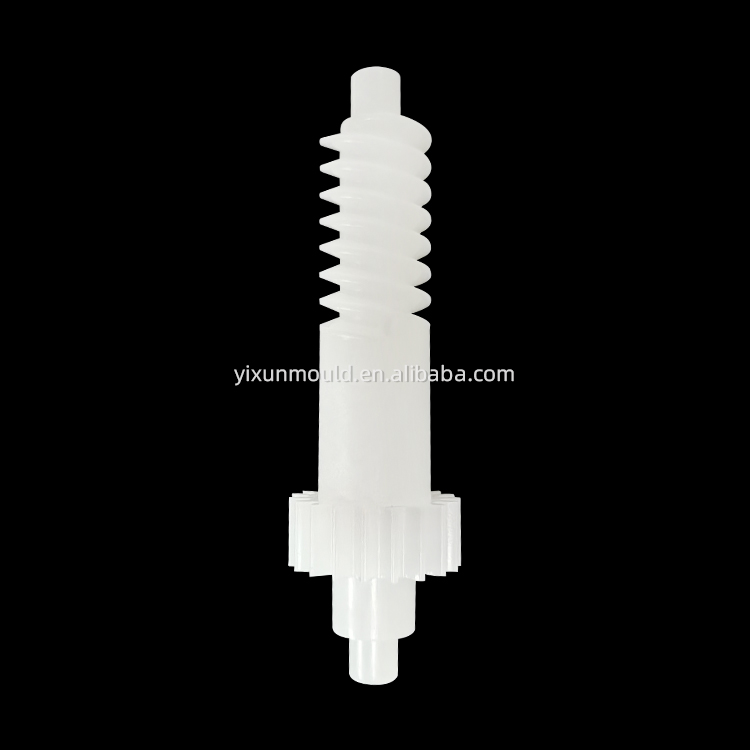

• Transmission parts: Custom precision gears
• Optical industry: Optical lenses

How to Choose a Reliable Precision Mold Supplier

When sourcing precision mold, you need to check these key points:

1. Full set of high-precision processing equipment
2. Complete quality management system, ISO9001 and ISO13485 certifications
3. Clean workshop environment for medical-grade parts
4. One-stop service: mold design, injection molding and product assembly

Conclusion & CTA

Precision molds are the foundation for manufacturing high-quality tiny complex components in medical, electronics and optical sectors.

If you are looking for custom precision molds for medical disposables, precision gears or electronic connectors, feel free to contact YIXUN for a mold quotation.
